Aeromotive Extreme Flow 2-Port EFI Fuel Pressure Regulator

$288.95

Quantity

  • Product Description

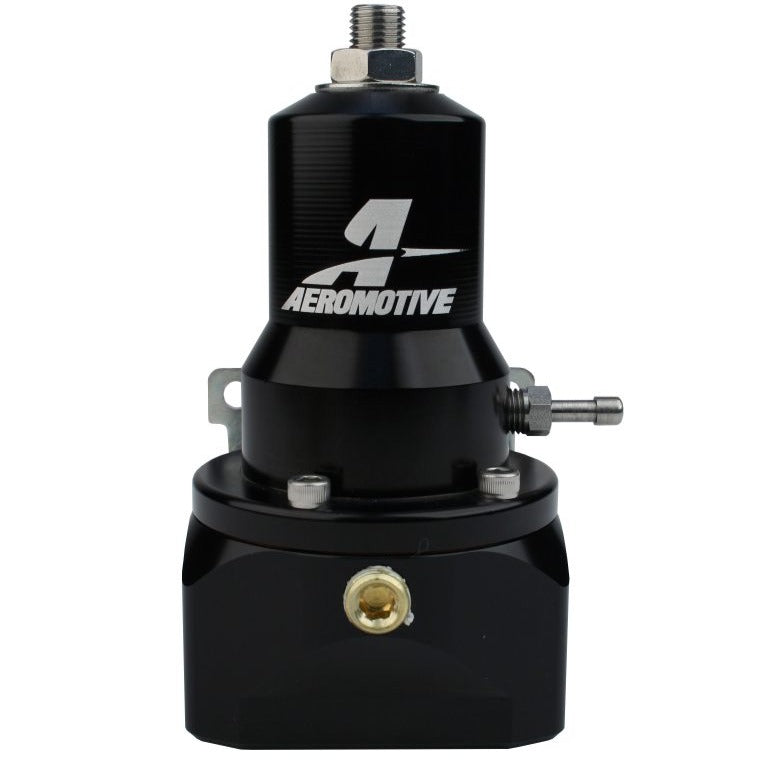

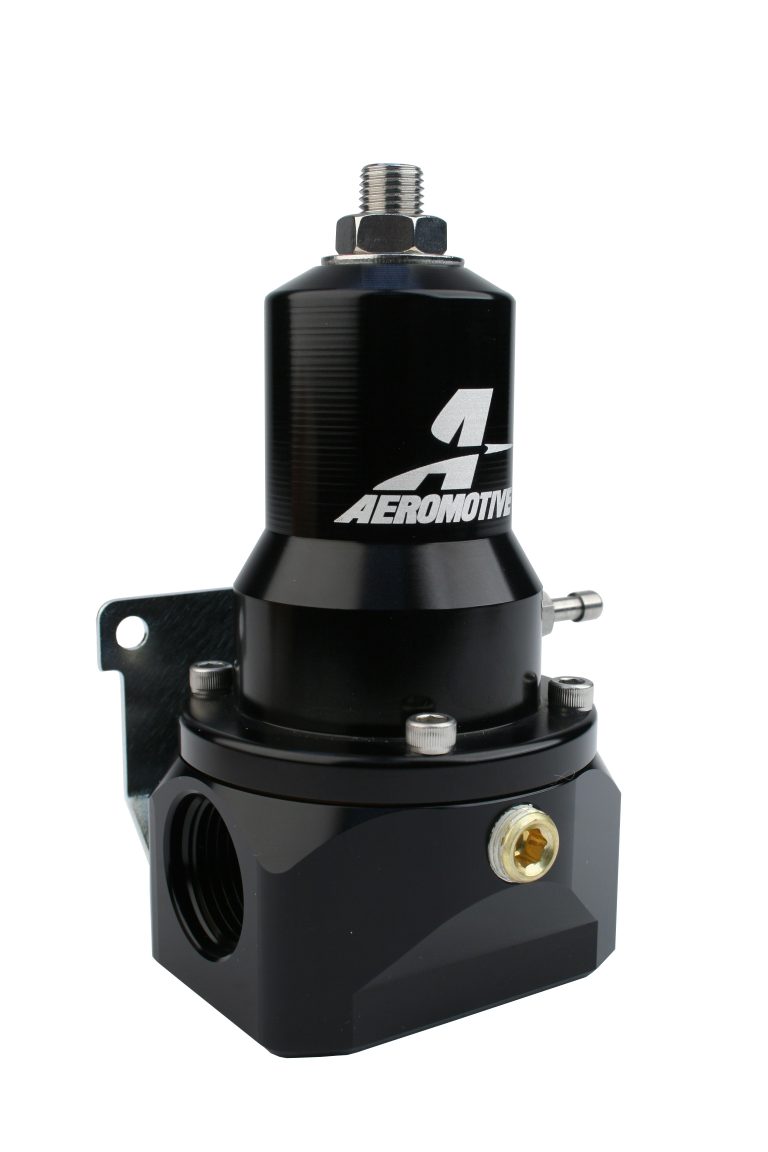

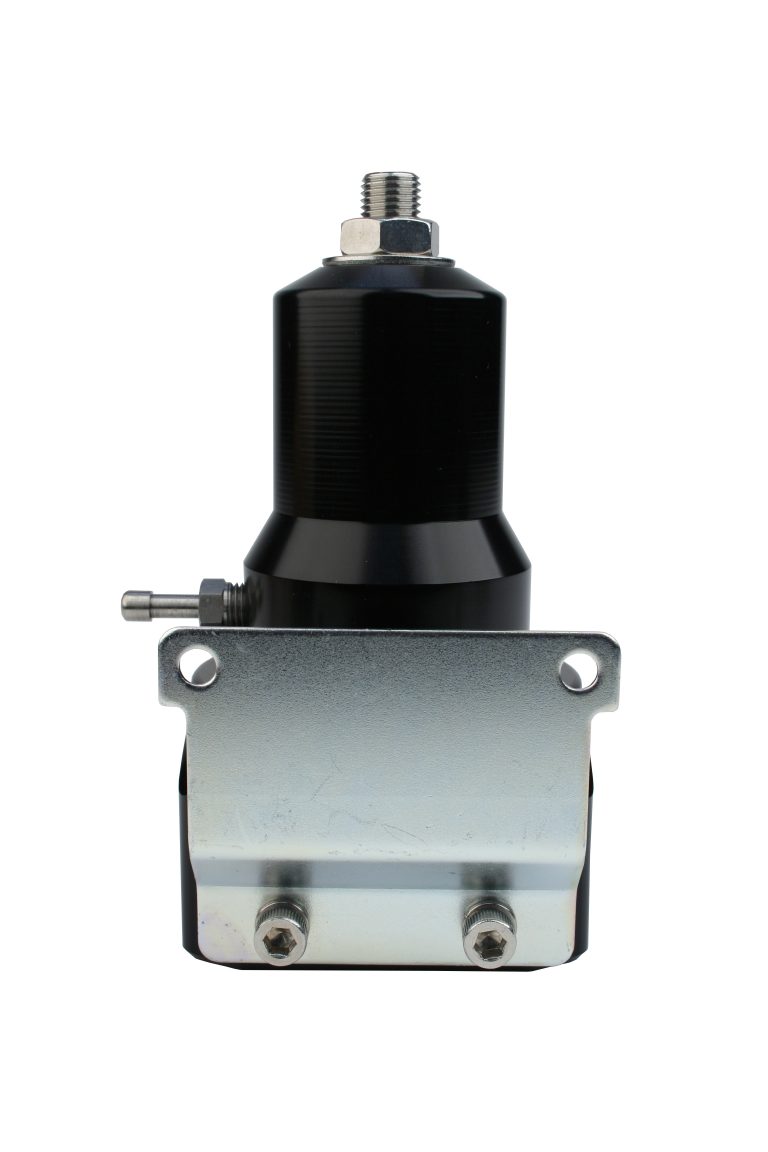

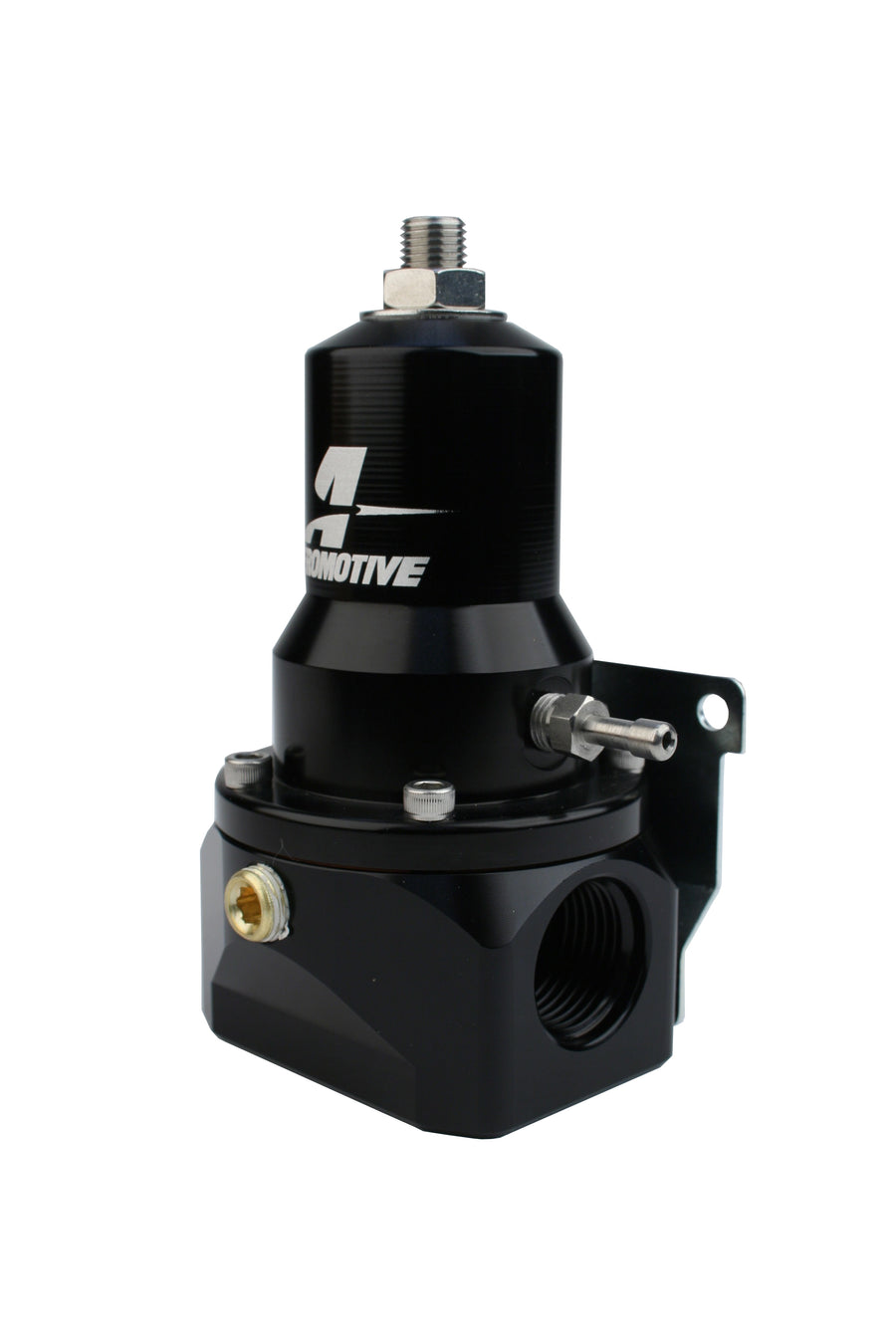

      Extreme Flow 2-Port EFI Fuel Pressure Regulator

      Part #: 13134

      30-75 PSI and 75-125 PSI Base Pressure Range

      • Extreme Flow Design ideal with Eliminator, Pro-Pump, Dual A1000 and Brushless 3.5 and 5.0 Gear Pump fuel systems.
      • Suitable for Mechanical pumps up to 6.0 GPM.

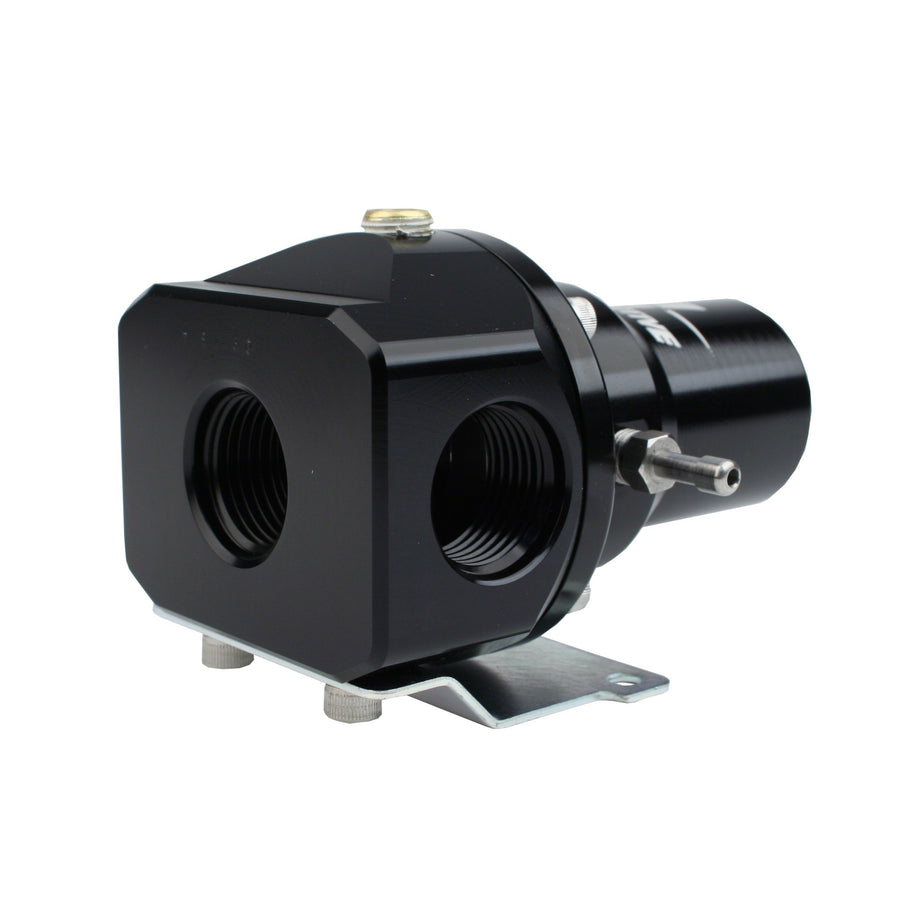

      • Compact, 2-Port Body with dual ORB-10 inlet/outlet ports and one ORB-10 return port.
      • High Flow 0.313" Valve/Seat, optimized for larger electric fuel pumps in the 2.5-6.0 GPM flow range.
      • Dual Springs expand pressure range while maintaining a low profile and reduced weight.
        • Standard spring (installed) supports 30-75 PSI base fuel pressure.

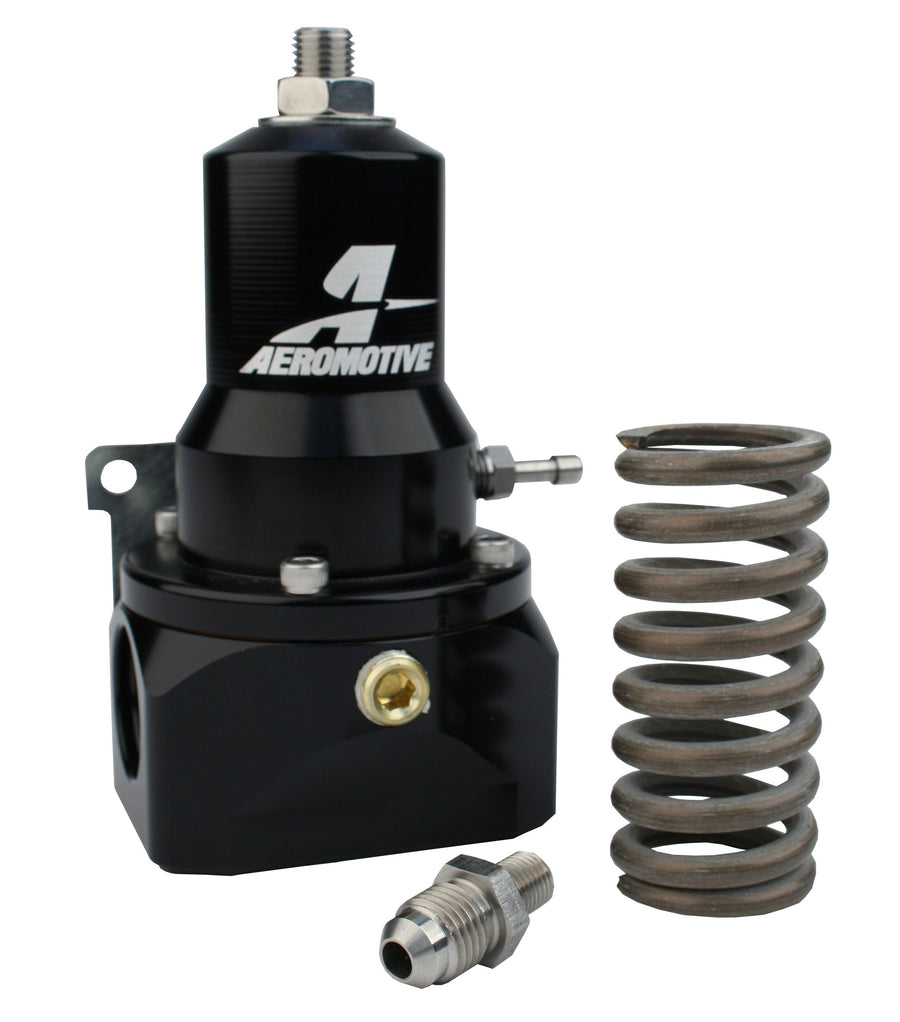

        • High Pressure spring (included) supports 75-120 PSI base fuel pressure.
      • Systems where an electric pump is desired and where base pressure exceeds 70-PSI should run two pumps of similar flow rate, in series.
      • This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
      • Vacuum and boost reference on a 1:1 ratio.
      • Compatible with gasoline, ethanol and methanol.
