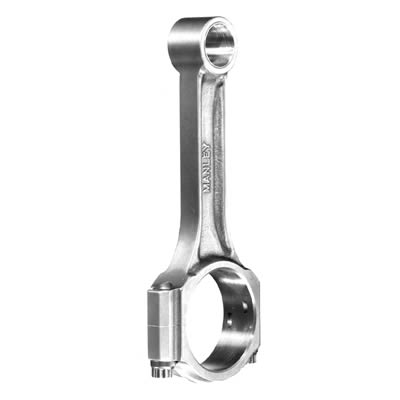

Manley Steel H-Beam Connecting Rods 14051R-8
-
Product Description
Manley steel H-beam connecting rods are made from forged 4340 steel alloy. They're packed full of performance features, such as a compact uniform-grain structure for ultimate strength, full machining, stress relieving, and magnafluxing. The wrist pin and big end bores are honed to a +/-.0002 in. tolerance, and the wrist pins get a bronze alloy bushing. These units include cap screw ARP 8740 alloy rod bolts, and each rod set is weight-matched to within 2 grams.
Quantity: Sold as a set of 8.
Connecting Rod Length Center to Center (in): 6.125 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened
Wrist Pin Style: Floating
Rod Journal Diameter (in): 2.100 in.
Big End Bore Diameter (in): 2.2250 in.
Pin End Bore Diameter: 0.928 in.
Clearenced for Stroker: Yes
Cap Retention Style: Cap screw
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: ARP2000 alloy
Fastener Tensile Strength (psi): 200,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 656
Advertised Horsepower Rating: 775 hp
Weight Matched Set: Yes
Magnafluxed: Yes
In Store Pickup: Anaheim, CA, USA
* Notes: 0.025 in. longer than stock. No offset on the journal. Custom pistons required when using connecting rods with custom wrist pin diameter and longer than stock length.
